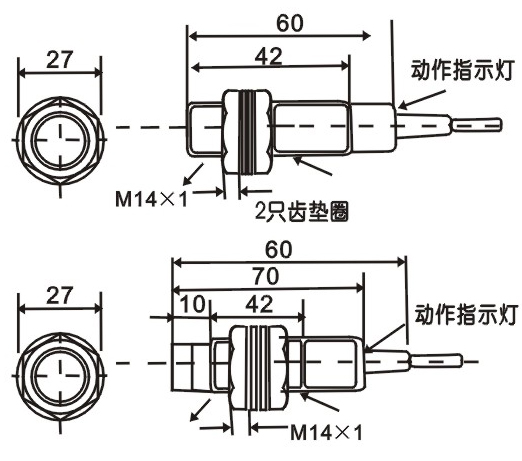

| 安装方式 | 埋入式 | 非埋入式 | ||
| 检测距离 | 3mm | 5mm | ||
| 交流AC90-250V | 二线制 | NO 常开 | CA14-M3KA | CA14-5KA |
| NC 常闭 | CA14-M3KB | CA14-5KA | ||
| 三线制 | NO+NC 常开常闭 | |||
| 继电输出四线 | NO+NC 常开常闭 | |||
| 继电输出五线 | NO+NC 常开常闭 | |||
| 直流DC6-36V | NPN | NO 常开 | CA14-M3NA | CA14-5NA |
| NC 常闭 | CA14-M3NB | CA14-5NB | ||
| NO+NC 常开常闭 | ||||
| PNP | NO 常开 | CA14-M3PA | CA14-5PA | |
| NC 常闭 | CA14-M3PB | CA14-5PB | ||
| NO+NC 常开常闭 | ||||
| 二线制 | NO 常开 | |||
| NC 常闭 | ||||
| 输出电压降DC/AC | AC<8V ,DC三线<1.5V ,DC二线<4V | |||
| 输出电流 | 可控硅SCR 300mA 继电器1A、2A DC三线200mA DC二线 50mA | |||
| 重复精度 | ≤10% | |||
| 消耗电流 | <10mA | |||
| 响应频率 | DC 800Hz,AC 25Hz | DC 400Hz,AC 25Hz | ||
| 外壳体材料 | 金属/塑料ABS | |||
| 设定距离 | 0-1.8mm | 0-4mm | ||
| 标准检测物体 | 18×18×1（任何物体） | |||
| 工作环境温度 | -20℃~+55℃ | |||
| 连接方式 | 1.5m PVC电缆 | |||
| 防护等级 | IP67 | |||
