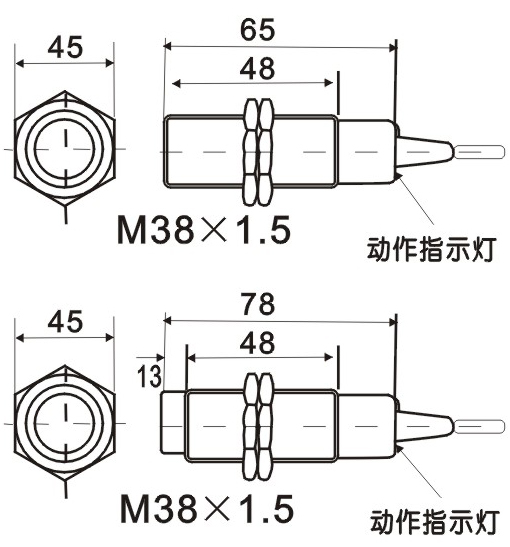

| 安装方式 | 埋入式 | 非埋入式 | ||
| 检测距离 | 12mm | 18mm | ||
| 交流AC90-250V | 二线制 | NO 常开 | FA38-M12KA | FA38-18KA |
| NC 常闭 | FA38-M12KB | FA38-18KB | ||
| 三线制 | NO+NC 常开常闭 | FA38-M12KE | FA38-18KE | |
| 继电输出四线 | NO+NC 常开常闭 | FA38-M12KC | FA38-18KC | |
| 继电输出五线 | NO+NC 常开常闭 | FA38-M12JC | FA38-18JC | |
| 直流DC6-36V | NPN | NO 常开 | FA38-M12NA | FA38-18NA |
| NC 常闭 | FA38-M12NB | FA38-18NB | ||
| NO+NC 常开常闭 | FA38-M12NC | FA38-18NC | ||
| PNP | NO 常开 | FA38-M12PA | FA38-18PA | |
| NC 常闭 | FA38-M12PB | FA38-18PB | ||
| NO+NC 常开常闭 | FA38-M12PC | FA38-18PC | ||
| 二线制 | NO 常开 | FA38-M12LA | FA38-18LA | |
| NC 常闭 | FA38-M12LB | FA38-18LB | ||
| 输出电压降DC/AC | AC<8V DC三线<1.5V ,DC二线<4V | |||
| 输出电流 | 可控硅SCR 300mA 继电器1A、2A DC三线200mA DC二线 50mA | |||
| 重复精度 | ≤10% | |||
| 消耗电流 | <10mA | |||
| 响应频率 | DC 200Hz,AC 25Hz | DC 100Hz,AC 25Hz | ||
| 外壳体材料 | 金属/塑料ABS | |||
| 设定距离 | 0-9.6mm | 0-14.4mm | ||
| 标准检测物体 | 40×40×1 | |||
| 工作环境温度 | -20℃~+55℃ | |||
| 连接方式 | 1.5m PVC电缆 | |||
| 防护等级 | IP67 | |||
